GlusterFS is great if you don’t have a lot of files in your folder, but it really slows down when you have a highly populated uploads folder. This is probably expected and normal for folks with a cluster, unless they’re using S3 or similar for upload storage.

GlusterFS is largely slow because it guarantees that the file exists on all nodes – so if you read a file, it’s off checking the other servers to confirm it has not been deleted. That’s unnecessary.

Below you’ll find a guide to using Unison for file replication. Unison has higher latency – means it could take a minute or two before your files make it to the other servers.

Unison latency problem for WordPress clusters

Given that we’re replicating the database and the database typically will replicate in seconds, that means some issues could arise if we’re not careful:

• If a new plugin is installed, WordPress may de-activate the plugin on other nodes when it spots that the files are missing. To get around this, WAIT 2 minutes after adding a plugin before you activate it. (I’m making a cluster-support plugin to aid here)
• If images are uploaded to a product or blog, those images will take about a minute to replicate. You should wait a minute after uploading your featured images before you actually publish your article. (I’ll add some stuff to cluster-support plugin to cover this too)
• Any file-based caching needs to be avoided. We do not want to overload Unison by replicating cache files. Use Redis or Memcached instead for object-caching and use Nginx for page-caching.

With that in mind, here’s the guide to getting Unison set up.

Install Unison for file replication

This Unison setup uses a star schema for file replication, with node 1 at the centre of the star.

node 1 <--> node 2 file replication
node 1 <--> node 3 file replication

That means a file edit on node 3 will replicate to node 1 and then to node 2. A file edit on node 1 will replicate out directly to node 2 and 3. Because of this, it makes sense to make node 1 our wp-admin server where we upload plugin files. Because of this star schema for file replication, node 1 is your most important node. If it goes down, or you switch it off, file replication will be paused until you bring it back online.

On each node, install unison:

apt-get -y install unison openssh-server

This will allow us to run the replication commands later once we have installed the WordPress files.

Configure SSH so nodes can connect to each other

SSH access is required for Unison to be able to replicate files. Run the following on all 3 nodes:

ssh-keygen

Hit enter 3 times to accept 3 defaults inc 2 blank passwords for the keyfile so it works non-interactively
Now, grab a copy of the id_rsa.pub files for each node and paste them into the other 2 nodes authorized_keys file. Find the public keys of each node by running this command:

cat /root/.ssh/id_rsa.pub

Then paste those public keys into the authorized_keys file of the other 2 nodes:

vi /root/.ssh/authorized_keys

Replicate the WordPress files using Unison

Now that we have ssh authentication, we can set up Unison to replicate the website files to node 2 and 3. Run the following commands on node 1 of your cluster:

unison /var/www/wpicluster ssh://10.130.47.4//var/www/wpicluster -owner -group
unison /var/www/wpicluster ssh://10.130.47.11//var/www/wpicluster -owner -group

Note: replace the IP addresses with your own and the folder names with your own.

These commands will take a little while to run for the first run, but then you’ll have efficient and quick file replication in your cluster.

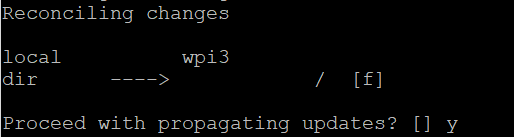

Note: You’ll probably see a message ‘Reconciling changes’ dir —-> [f] – if you see this, hit ENTER. Then it will ask you if you want to proceed, hit y then ENTER.

You also need to set up a crontab/cron job for Unison. Run the following command:

crontab -e

Choose whatever editor you prefer when it asks you then append the following to the end of the file:

* * * * * unison -batch /var/www/wpicluster ssh://10.130.47.4//var/www/wpicluster &> /dev/null
* * * * * unison -batch /var/www/wpicluster ssh://10.130.47.11//var/www/wpicluster &> /dev/null

Change IP addresses and folder locations. Use internal IP addresses so traffic goes over the faster internal network card.

Change Nginx rules to force all wp-admin traffic to node 1

Modify your Nginx Rule to force all wp-admin traffic to node 1. We want to do this so any files uploaded will go to node 1 then outwards from the star schema.

location ~ /wp-(admin/|login.phpb|cron.php) {
 proxy_pass http://clusterwpadmin;
 proxy_set_header X-Forwarded-Host $host;
 proxy_set_header X-Forwarded-Server $host;
 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
 proxy_set_header X-Forwarded-Proto $scheme;
 proxy_set_header X-Real-IP $remote_addr;
 proxy_set_header Host $host;
}

That’s it. It’s way faster than glusterfs, just a couple of caveats at the top of this article you have to be aware of.

You should test it out – the way I did it was to create a copy of the WordPress folder still while GlusterFS was running and then used Unison on that.

Once you’re happy with your new star-schema file replication, you can remove GlusterFS:

apt-get remove glusterfs-server

Let me know any questions.
